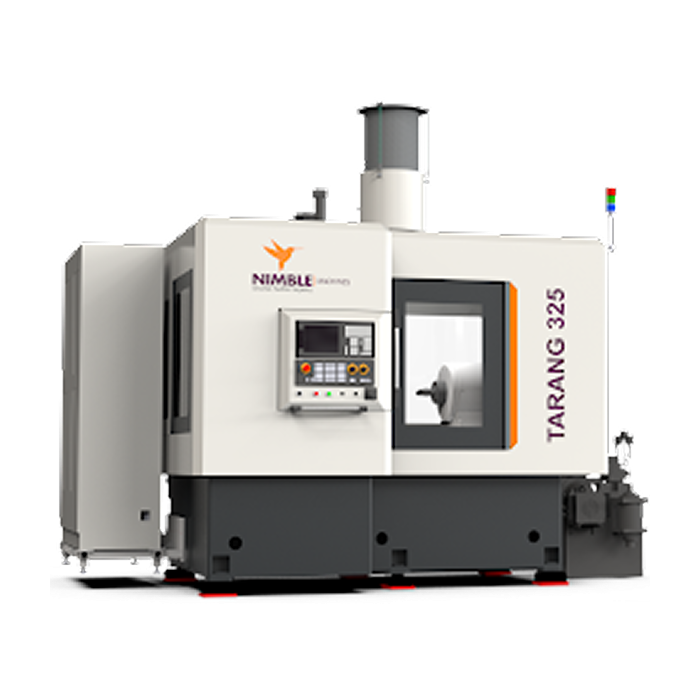

TARANG 325
High Speed • AGILE • Versatile
Introducing Nimble Machines’ Tarang 325, India’s first 5-axis spiral bevel gear generator capable of generating spiral bevel gear upto module 7mm and 325mm component diameter. Powered by SIEMENS 828D control system, it utilizes a sliding cutter spindle for high-speed, backlash-free motion. With 5-axis CNC control, Direct Drive technology, and high clamping torque on the work table, it ensures precision and stability.
Key Features
Hypoid Gear Mastery
Hypoid Gear Mastery Leading the industry with Tarang 325’s specialized capabilities in crafting precise and efficient hypoid gears for diverse applications.
Structural Excellence
Structural Excellence Elevate performance with an optimized base frame, meticulously crafted using Finite Element Method (FEM) for unparalleled structural integrity.
Efficiency in Tool Changes
Efficiency in Tool Changes Streamline operations with a quick tool change mechanism, minimizing downtime and maximizing productivity in the gear manufacturing process.
Direct Drive Precision
Direct Drive Precision Achieve superior precision with direct drive technology in both spindle and work head, ensuring optimal power transmission for top-tier gear machining.
User-Friendly Control System
User-Friendly Control System Equipped with Siemens 828D NC system, an intuitive and user-friendly control system, the Tarang 325 ensures a smooth gear manufacturing experience.
Machine Concept
Machine Concept
| key specifications | TARANG 325 |
|---|---|
| Horizontal Slider | X |
| Vertical Slider | Y |
| Sliding Base | Z |
| Machine Root Angle | A |
| Cutter Spindle | B |
| Work Spindle | C |
Technical Data
| key specifications | TARANG 325 |
|---|---|
| Module (mm) | Upto 7 |
| Workpiece diameter (mm) | Upto 325 |
| parameters | |
|---|---|
| No of Teeth | 5 -200 |
| Max Cutter dia (inch) | 7.5 |
| Max Spindle speed (rpm) | 500 |
| Table Speed (rpm) | 150 |
Applications
